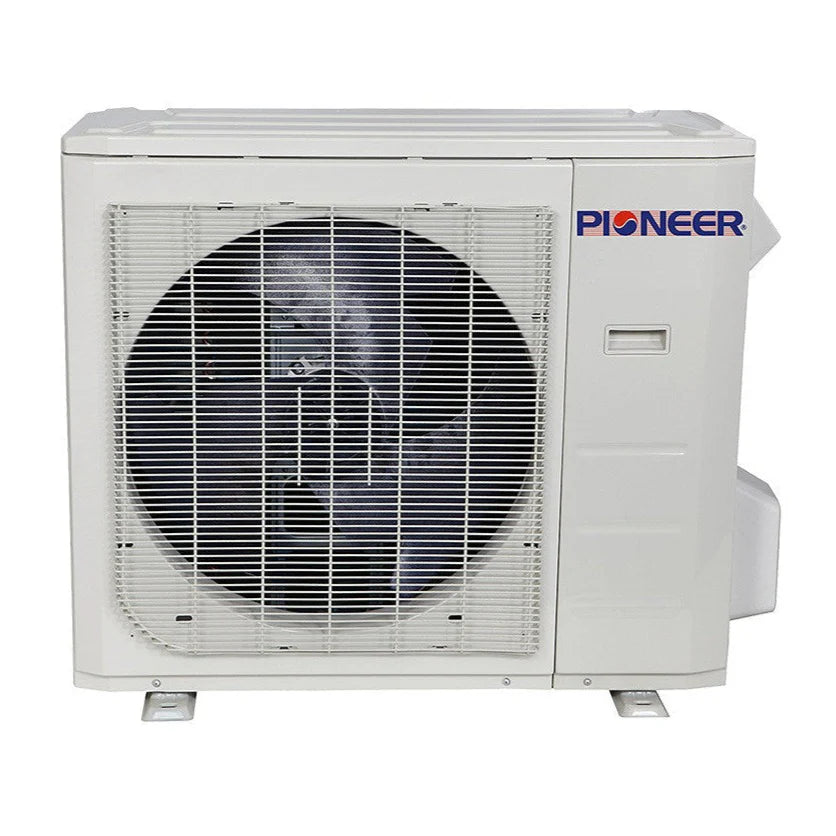

22.5 SEER 27K BTU Multi Split Air Conditioner and Heat Pump X45380
Sale price
$39.99
Regular price $350.00
Skip to product information
22.5 SEER 27K BTU Multi Split Air Conditioner and Heat Pump X45380
Sale price
$39.99
Regular price $350.00
Shipping calculated at checkout.
Summary
- OUTDOOR SECTION ONLY for Triple (3) Zone
- Ultra High Efficiency DC Inverter++ version
- Cooling capacity: 27,000 BTU/H Nominal (Range: 8,500 MIN ~ 32,000 MAX) with 22.5 SEER efficiency
- Heating capacity: 28,000 BTU/H Nominal (Range: 8,200 MIN ~ 35,000 MAX) with 10.2 HSPF efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Factory charged for up to 25’ line set per circuit
- Whisper Quiet Operation
Refrigerant
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.
PRODUCT SPECIFICATIONS:
| Product Dimensions | 37.2'W x 16.2'D x 31.8'H |
| Power Supply | 208-230V, 60Hz, 1Ph |
| Communication Protocol | Current Loop |
| Min-Max Load Attached | 18,000~36,000 BTU/h |
| Cooling Rated Capacity | 27,000 BTU/h |
| Cooling Capacity Range | 8,500~32,000 BTU/h |
| Cooling SEER (Ductless) | 22.5 BTU/w |
| Heating Rated Capacity | 28,000 BTU/h |
| Heating Capacity Range | 3,690-32,860 BTU/h |
| Heating HSPF (Ductless) | 10.2 BTU/w |
| Refrigerant Type | R410a |
| Suitable Area | 800-1,200 Sq.F |
| Sound Level | 60.0 dB(A) |
| Weight | 140 lbs |
| Certificates | Energy-Star Certified |
- Technical Brochure
- User Manual
- Installation Manual
- Service Manual
- AHRI Certificate
- Energy Guide
